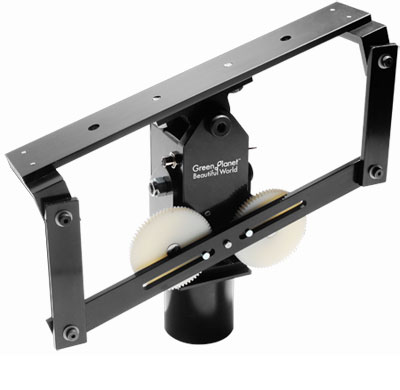

Atlantis™ MT-100
Atlantis™ MT-100 is compact and easy to install. It can hold up to 40 lbs, equivalent to a single 210 Watts solar panel. Atlantis™ MT-100 can be installed on a fixed location or a portable system with the option of top pole mount, side pole mount, or combined. MT-100’s innovative design is based on a simple mechanical movement that requires no sensor. This unique design makes Atlantis™ MT-100 more reliable and durable compare to existing solar trackers.
Atlantis™ MT-100 is also cost effective. With similar cost to a fixed mount, installing Atlantis™ MT-100 will increase your system performance by at least 30%.
| Model No. | AtlantisT MT-100 |
| Product Dimension | 12 1/2" x 4 1/4" x 9" |
| Product Weight | 5 lbs |
| Accessory | 1 Watt. small module is included for powering the rechargeable battery inside this tracker |
| Axis | Dual ( one axis auto, one axis manual) |
| Tilt Angle (Vertical) | Manually set the tilt angle 0, 15, 30, 40, 50, 60 degrees depends the latitude where your system installed |
| Tilt Angle (Horizontal) | Automatically tilts from east 35 degrees to west 35degrees in the daytime and go back to east in the midnight 24 hours per cycle day after day. |
| Control Type | Mechanical Movement, No Sensor |
| Mounting Type | Single Panel Top Pole or Side Pole Mount |
| Operation Temperature | -10 C to +50 C |
| Weight Load | 40 lbs |
| Panel Size | 210 Watt. |
| Estimated Wind Load | 90 mph |
| Water Resistance | Yes |
